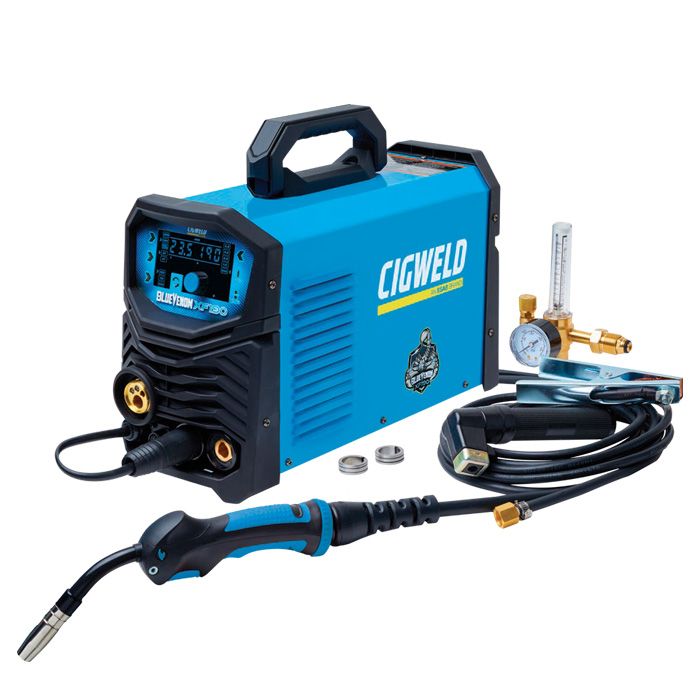

Cigweld BlueVenom XF190


Cigweld BlueVenom XF190

Sinergic 3-in-1 Welding Inverter With MIG Plate Thickness Selection.
30% smaller and lighter than most of machines in its class!

The BlueVENOM XF190 is the perfect solution for light fabrication, maintenance and repairs or for DIY around the home, workshop, worksite, or farm without compromising on quality, safety and performance.


  • MIG (QuickSet and Manual, Gas & Gasless)
  • Stick (MMAW)
  • TIG (DC Lift TIG)

The BlueVenom XF190 comes with an integrated wire feeder that holds up to a 200mm spool.

Professional Features to ensure optimal welding results:

  • You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
  • Great welding results from domestic household 230V/240V x 10A power
  • Opti-Start, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
  • 2 x Roll All-Driven (top & bottom) Wire Drive system.
  • MIG Adjustable Wire Burnback & Inductance
  • MIG Wire Inch button
  • MIG Gas Purge Button
  • MIG Side door wire installation, side loader
  • MIG Anti de-spooling safety feature
  • MIG Spool Gun Compatible
  • STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
  • STICK Adjustable Hot Start
  • STICK Adjustable Arc Force
  • STICK Anti-Stick
  • Thermal Overload Protection
  • TIG Foot Control Compatible
  • TIG Dial Remote Torch Compatible

Package Includes:

  1. BlueVENOM XF190 Power Source
  2. CMGBZ15E3 MIG Gun 3m- Euro quick connector
  3. Work Clamp with 3m Lead
  4. Twist Lock Electrode Holder with 3m Lead
  5. 2 x Feed Rolls: 0.8/0.9mm Gasless, 0.8/0.9mm Solid Wires (Fitted).
  6. 2m Argon Gas Hose and Gas Regulator
  7. Includes Nylon Inlet Guide for use on Soft Alloy Wires

Power Supply (Voltage): Single-Phase 230V/240V +/- 15%
Supply Frequency: 50/60Hz
Supply Lead and Plug supplied: 10 Amp

Amperage Range (MIG): 30 - 190A
Voltage Range (MIG): 15.5 - 26.0V

MIG (GMAW) Duty Cycle @ 40°C: 185 Amps @ 9% | 72 Amps @ 60% | 56 Amps @ 100%
STICK (MMAW) Duty Cycle @ 40°C: 160 Amps @ 10% | 65 Amps @ 60% | 50 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C: 190 Amps @ 10% | 77 Amps @ 60% | 60 Amps @ 100%

2- Year Conditional Warranty

Weight of Power Source: 9.5kg
Power Source Dimensions (mm): L: 465 x W: 190 x H: 340
