Stock Code:
PT-1000
Stock Level:
In Stock

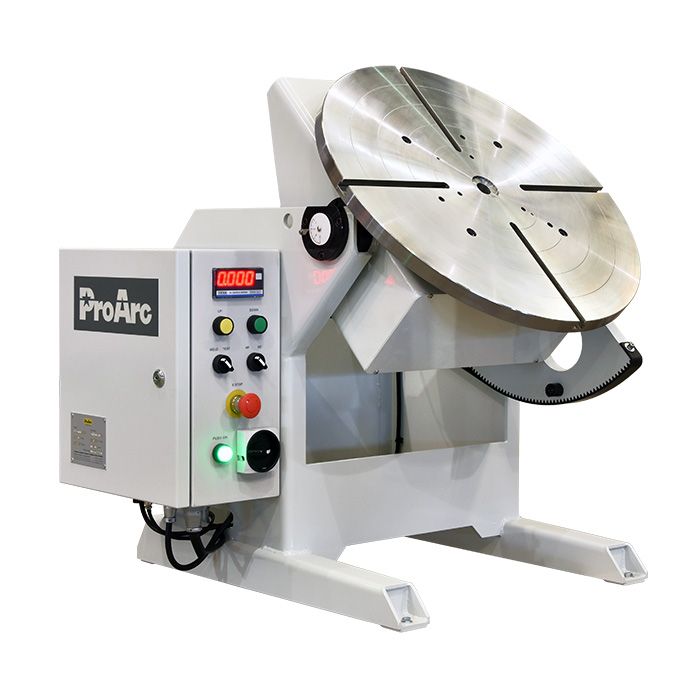

ProArc Positioner/Rotator 1000kg
Price:
$16,950.00 (excl.GST)
An automatic positioner, working in MIG/MAG, CO2 and TIG welding processes.
Optional extra - chuck, foot pedal.
Features:
- Allow steel fabrication shops operator to position the jobs for 'downhand' position in the shortest possible time, without the use of cranes and manpower.
- 360° degree rotation, 135° degree tilts.
- High frequency protected.
- Machined "T" slots table with pilot and through hole.
- Free maintenance grounding system.
- Standard forward/reverse rotation and variable speed control.
Power Input: 1 Phase, AC 220V, 50/60Hz
Capacity, kg: 1000
Rated center of gravity, mm: 300
Rated eccentricity, mm: 200
Table dimension (E), mm: Ø600
Table slot bolt size: M12
Rotation Speed, rpm: 0.05 ~ 1
Spindle thru hole, mm: Ø26
Earthing, Amp: 300 @ 100%
Tilt range, deg: 0 ~ 135
Overall length (A), mm: 1,100
Overall width (B), mm: 930
Overall height (C), mm: 800
Center to floor (D), mm: 700
Weight, kg: 350kg
