Stock Code:
1-1601-EC

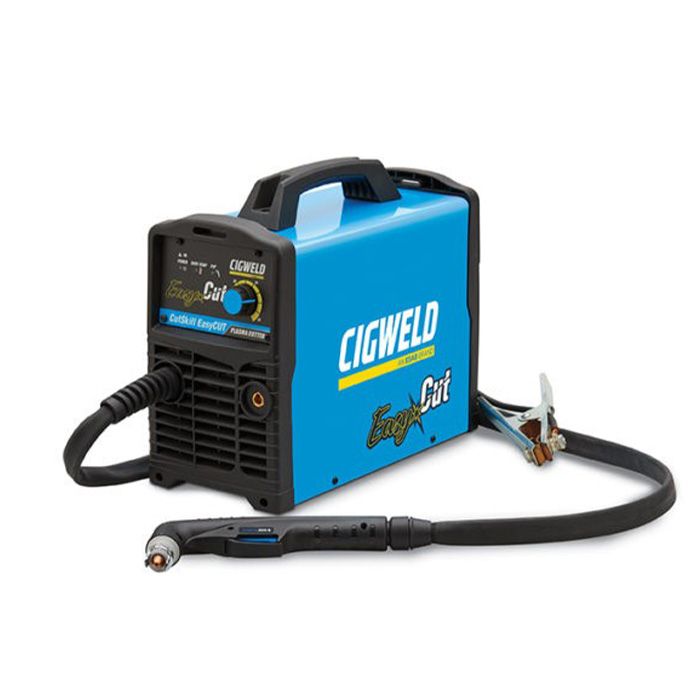

Cigweld CutSkill EasyCut Plasma Cutter
Price Enquiry
Perfectly suited to the DIY cutting user, the EasyCut is still loaded with features – Parts In Place protection to protect your consumables and torch from arc damage, adjustable amperage to suit the plate thickness you’re trying to cut, and high grade consumables built for durability saving you time and money!
Features:
- Removable air filter with purging valve
- Parts in place (pip) protection (If the torch consumables are not correctly installed the torch will not arc, increasing the lifespan of the consumables and torch itself).
- Internal regulator, air through the torch is managed automatically by the plasma unit.
- The EasyCut Plasma Cutter comes complete with a direct connected 30Amp torch.
- Power Source is 15-30A. Provides DC Output.
- 10mm Genuine Cut, Mild Steel, Aluminium & Stainless Steel. 12mm Severance Cut, Mild Steel. Aluminium & Stainless Steel. 8mm Pierce Cut.
- 10 Amp plug.
Package:
- CutSkill EasyCut Plasma Power Source
- CutSkill 30A Plasma Torch
- Work Cable and Clamp
- Wrench for Air Filter
- 1 x 1/4” Nitto Air Line Connector
Genuine Cut - Mild Steel, Stainless Steel & Aluminium | 10mm
Severance Cut - Mild Steel, Stainless Steel & Aluminium | 12mm
Pierce Cut: 8mm
Input Power: 240v, 1ph, 10a
Duty Cycle: 15% @ 30a
Current Range: 15-30amps
Input Air Required: 800kpa, 150lpm
Generator Required: 7.5kva
Supply Plug: 10amp
Dimensions: 380mm L X 175mm W X 325mm H
Weight: 10.5kg
