Stock Code:
W1003510
Stock Level:
In Stock

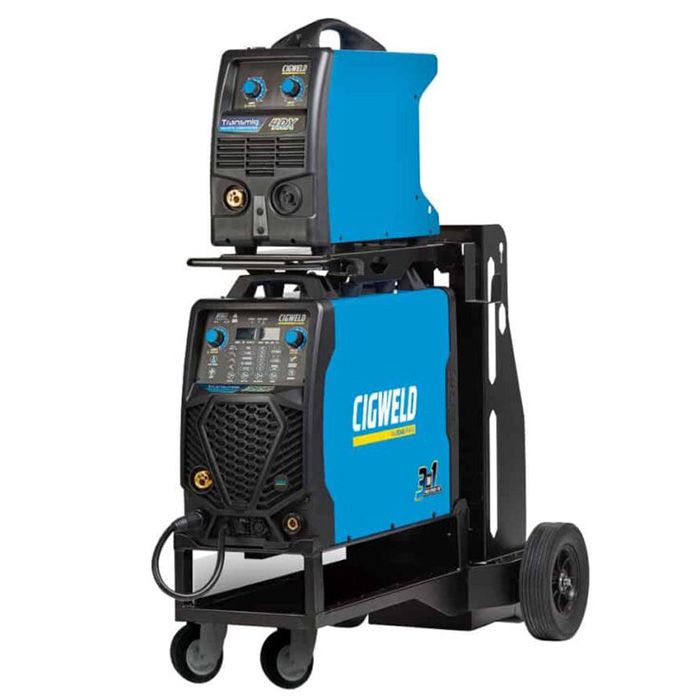

Cigweld Transmig 355i Remote Plant

Was:
$6,550.00 (excl.GST)
Price:
$5,240.00 (excl.GST)

CIGWELD’s Transmig 355i is a powerful 3phase 3in1 Multi-Process inverter

It operates at 355A@60% Duty Cycle and offers exceptional welding results across MIG, STICK and TIG, and the added convenience of CIGWELD’s AUTO SET MIG feature for optimal plate thickness controll.

The Transmig 4RX Wirefeeder is designed for use with the Transmig 355i Multi Process Welder – a robust 4 Roll Feeder that can operate with 200mm and 300mm spools. Fitted with a single tension arm the drive system is simple to operate for easy changing of wire and feedrolls.

The Transmig 355i is supplied with a Tweco Fusion 400 AMPair-cooled MIG Torch that can be used with the 4RX Wire Feeder.

The Fusion MIG Torch is designed with an ergonomic handle that feels light in the hand to reduce operator fatigue.

Features:

  • Smooth, stable arc performance at 355A @ 60%.
  • Push Pull Gun Compatible (Transmig 355i is compatible with the CIGWELD TBI Push Pull Torch with Sync Box.
  • Spool Gun Compatible (Transmig 355i is compatible with the Tweco SGT250 Spool Gun
  • Euro Torch Connection
  • Voltage Reduction Device (VRD)
  • Generator Compliant 14KVA
  • Cooling: Fan Cooled
  • Robust Design
  • IP23S designed for heavy duty fabrication
  • Flexible Remote or Local Configurations
  • Driven by a robust 4 Roll drive system to ensure smooth wire feedability
  • Memory Push Button
  • Easy access memory to store up to 15 of your favourite welds
  • Easy access push buttons to either purge shielding gas through the torch, or feed wire without wasting shielding gas.
  • Adjustable Advanced Features (Burnback, Inductance, 2T/4T, Spot/Stitch Weld, Pre/Post Flow, Crater Fill, Crater Current, Crater Volts, Run In, Creep Feed & Down Slope.
    Auto Set Plate Thickness Control)
  • Pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter
  • Heat Trim Control (Allows the user to customise and tweak their voltage for optimal performance when in AUTO SET MIG mode).
  • Auto Set parameters for MIG.
  • Determined by material type, thickness & consumable diameter.
  • Customisable Heat Trim Function allows user to tweak voltage for optimal performance (in AUTO SET MIG only).
  • Push Button Interface

Package:

  1. Transmig 355i Inverter Power Source
  2. Transmig 4RX Wire Feeder (W3000410)
  3. Transmig 355i Trolley (W4015005)
  4. Transmig 4RX Interconnection Lead, 8m (W4016002)
  5. Feedroll 0.9/1.2mm V Groove (Fitted)
  6. Tweco Fusion 400 Mig Torch 3.6m
  7. Comet Professional Argon Regulator
  8. Flowmeter Work Clamp with 4m Lead
  9. Shielding Gas Hose Assembly

Processes: MIG, STICK, LIFT TIG, AutoSet MIG Inverter Power Source

MIG (GMAW/FCAW) 355A @ 60%
0.6-1.2mm: Solid Wires
0.8-2.0mm: Gasless Wires.
0.9-1.2mm: Aluminium Wires.
0.9-1.2mm: Stainless Steel Wires.
0.8-1.2mm: Silicon Bronze Wires.

STICK (MMAW) 355A @ 60%
Power Source suitable for 2.0mm, 2.5mm, 3.2mm and 4mm and 5mm electrode sizes.

TIG (GTAW) 355A @ 60%

Supply Voltage: 415 VAC 15%
Supply Frequency: 50/60 Hz
Input Current: 15 - 20A

Warranty: 3- Year Conditional Warranty
