Stock Code:
W1008205
Stock Level:
In Stock

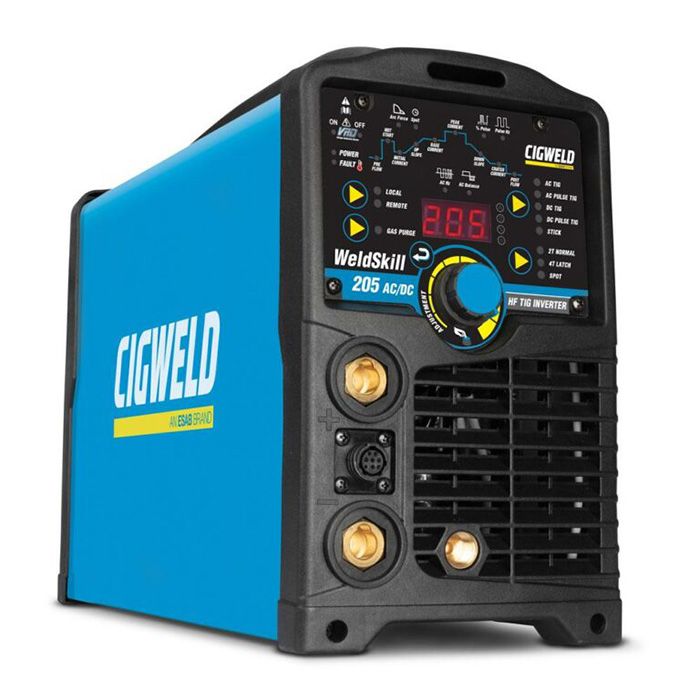

Cigweld Weldskill 205 AC/DC TIG Welder

Price:
$2,500.00 (excl.GST)

The Cigweld 205 AC DC TIG Welder is a 15 Amp 240 volt, digitally controlled, High Frequency AC/DC TIG (GTAW) and Stick (MMAW) inverter

This unit is specifically designed for the budget conscious user who doesn't want to sacrifice on quality or weld results.
Ideal for indoor or outdoor use around the workshop and is easy to carry and maneuver into hard to reach places when doing light fabrication and maintenance of mild steels, stainless steels and aluminium.

In TIG mode the unit has all the features required to customise your welding preferences - High Frequency (HF), Up/Down Slope, Pre/Post Flow, 2T/4T Trigger Function, Spot Mode and Gas Purge for AC or DC TIG welding.
When welding in AC only, Frequency and Wave Balance can be refined with impressive adjustability and when operating in Pulse Mode the user has full flexibility to adjust Frequency, Width and Peak Current.
In Stick Mode the 205 AC/DC features VRD, Anti-Stick and Hot Start and can weld up to 4mm electrodes.

Processes:

AC/DC HF TIG (GTAW), Stick (MMAW)

Features:

  • 15A Supply Lead
  • Light and portable 12kg power source
  • Can TIG Weld up to 8mm Aluminium Plate
  • Can STICK weld with up to 4mm electrodes
  • Pulse: Pulse Frequency / Pulse Width / Peak Current
  • AC Frequency / AC Wave Balance
  • Pre-Flow/Post-Flow Adjustment (TIG mode only)
  • Gas Purge
  • Spot Weld
  • Up Slope / Down Slope
  • Trigger Lock (2T, 4T)
  • Initial Current (4T)
  • Crater Current (4T)
  • Over Temp Protection
  • Anti-Stick (STICK)
  • Hot Start (STICK)
  • Digital Meter
  • VRD <35DC (Voltage Reduction Device)
  • IP23S (Indoor and Outdoor use)

Package Includes:

  1. WeldSkill 205AC/DC HF TIG Inverter Power Source
  2. TIG Torch with 8m Lead and Remote Control
  3. TIG Torch Accessory Kit
  4. CutSkill Preset Argon Regulator/Flowmeter
  5. Twistlock Electrode Holder with 4m Lead
  6. Work Clamp with 4m Lead
  7. Shoulder Strap

Current Range
10-205A (TIG Mode), 10-160A (STICK Mode)

Duty Cycle
HF TIG: 205A @ 20%, 18.2V (40C, 10mins)
STICK: 160A @ 20%, 26.4V (40C, 10mins)

Generator Requirement: 10kVA
Open Circuit Voltage: (VRD On) <35V, (VRD Off) 63V
Supply Voltage: 240V, +/- 15%, 50/60Hz

Weight: 12kg (Power Source), 22.5kg (Package)
Dimensions: 324H x 176W x 430D mm

Warranty: 3 Year Warranty

Supply Plug & Lead: 15A
