Stock Code:
PT-051
Stock Code:
PT-052
Stock Level
In Stock
In Stock
In Stock

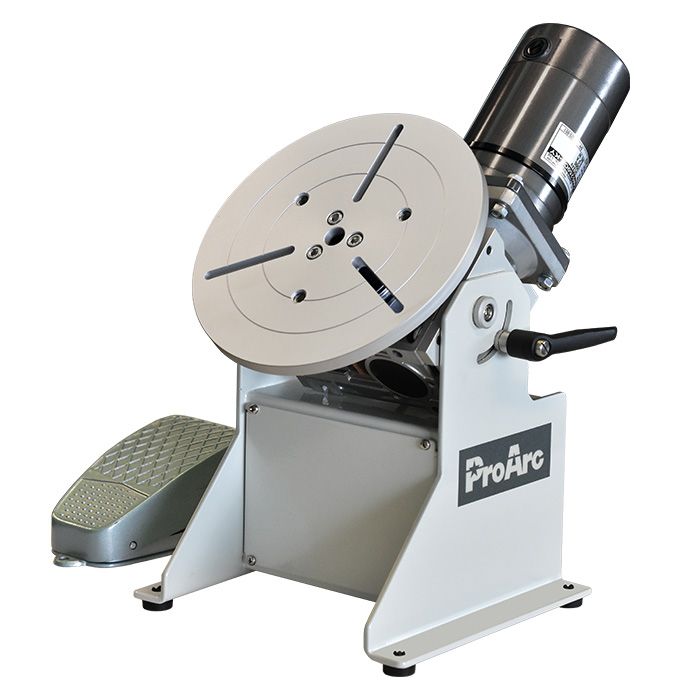

ProArc Positioner/Rotator 50kg
Price:
$2,250.00 (excl.GST)
Price:
$2,695.00 (excl.GST)
System comes with standard on/off foot control easy for operation.
Chuck for the positioner is also available as option.
Options available:
- Standard system
- Digital system
Features:
- The controller can withstand high frequency influence.
- Tilting angle range from 0° ~ 90° for different welding application.
- Main shaft equip a Ø14 mm through hole for pipe welding or shield gas.
- Faceplate contains 3 straight slots for 3-jaw chuck (PG-050L or PG-095L in option).
Package includes:
- Benchtop welding positioner

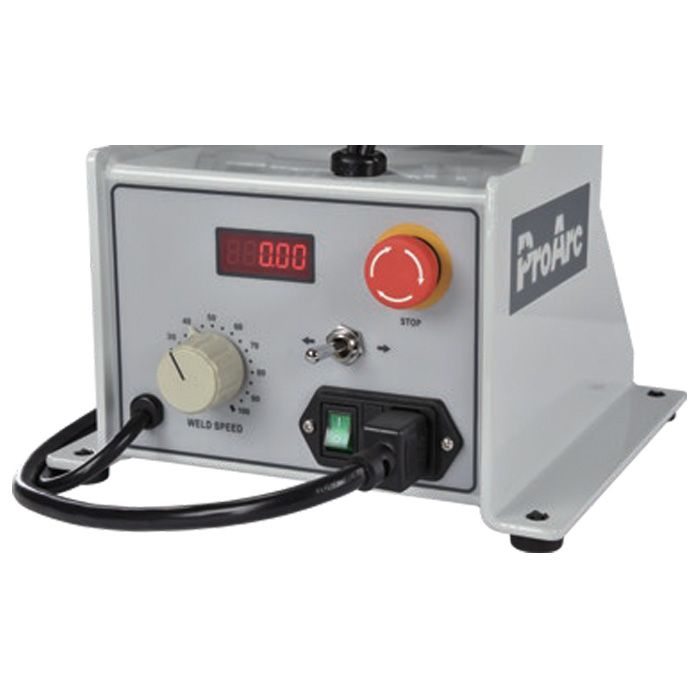

- Emergency stop
- Forward / Reverse switch
- Speed adjustment knob
- Non latch foot control
- Power cord & Adapter
Power Input: 1 Phase, 100~240 VAC, 50/60Hz
Capacity, kg: 50 / 30 (Horizontal / Vertical)
Rated eccentricity, mm: 30
Table dimension (E), mm: Ø200
Rotation Speed, rpm: 0.5 ~ 8
Spindle thru hole, mm: Ø14
Earthing, Amp: 200 @ 100%
Tilt range, deg: 0 ~ 90
Overall length (A), mm: 320
Overall width (B), mm: 240
Overall height (C), mm: 265
Center to floor (D), mm: 205
Weight, kg: 10kg
