MOGGY Magnetic Base Portable Trackless Welding Carrige. With control

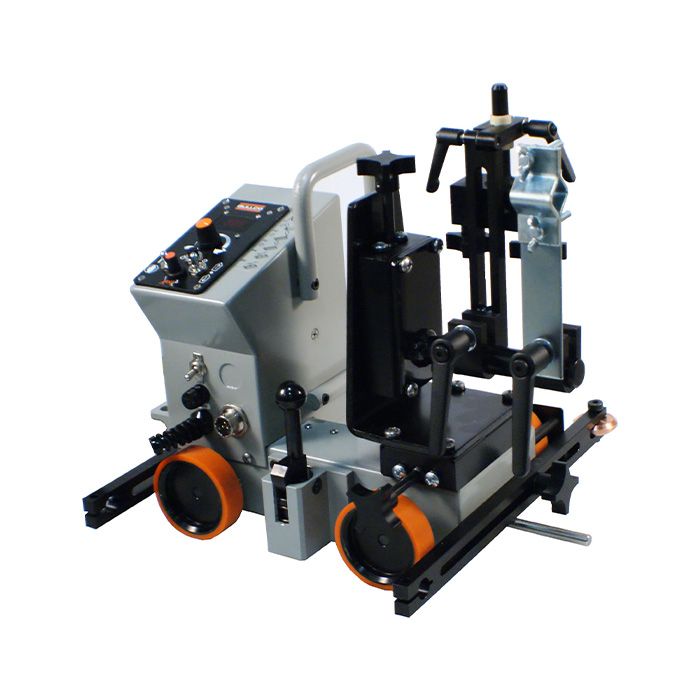

Gullco Moggy® - Magnetic Base - Stitch And Continuous Welding Carriage
This magnetic base automated welding carriage is intended to automate and improve the quality of welding and cutting operations by carrying the welding gun or cutting torch, at precisely controlled speeds, along the path of the joint as well as providing the interface between the welding and cutting motion and the arc start and stop signal.
The Magnetic MOGGY® is normally guided by adjustable guide wheels which are used to keep a set distance from the joint path.
Features:
- Magnetic base allows for out of position welding applications
- Ideal for automatic horizontal fillet, lap or butt welding applications
- Controls for continuous of stitch welding operations
- Cutting torch attachment and internal radius guide wheels
- Dual gun holder assemblies make automated simultaneous welding efficient (for model with Dual Torch)
- The MOGGY® can be equipped with a variety of accessories including: weld oscillator
The carriage is flexible enough to allow it to be easily configured for horizontal lap, butt and fillet weld joints as well as a variety of cutting processes.
Comes with a control that uses a Gullco microprocessor to provide accurate repeatability regardless of travel speeds for weld distance on and weld distance off. it has a forward/stop/reverse switch, wire feed start on/off switch, travel speed potentiometer, auto wire feed start with delay carriage start, wire feed connector with 15ft. (4572mm) control cable. All functions displayed in an highly visible LED window.
Type: Magnetic
Speed Range: 8.26 to 255.27 cm/min (3.25 to 100.50 in/min)
Length 431.8 mm (17 in)
Width 355.7 mm (14 in)
Height 327.3 mm (12.9 in)
Weight 14.1 kg (31 lb)
